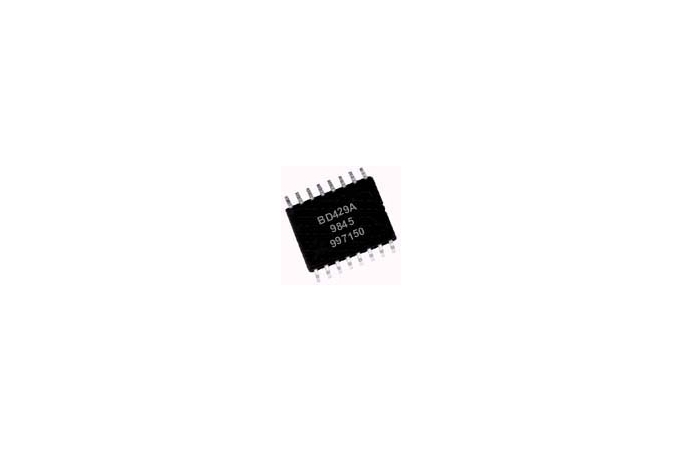

BD429/DEI0429 ARINC 429/RS-422 Line Driver Integrated Circuit
BD429/DEI0429 系列

ARINC 429 Line Driver for HI speed (100 kHz) and LOW speed (12.5 kHz) data rates
· Pin for Pin replacement part for industry standard ARINC 429 Line Drivers

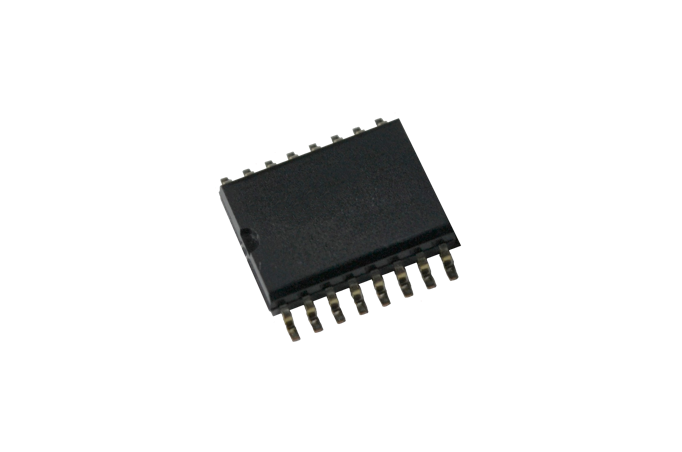

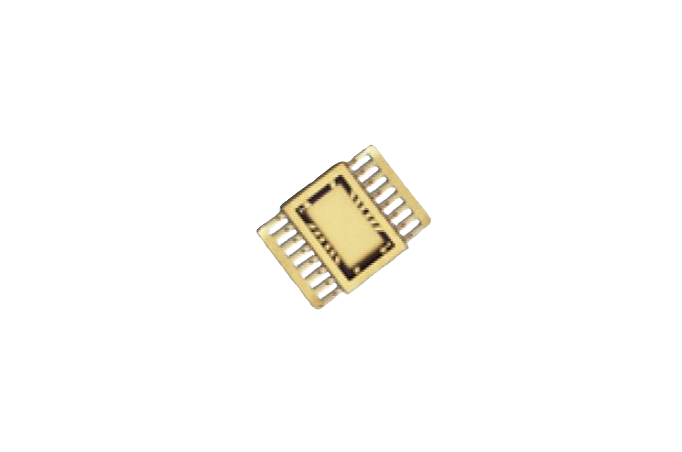

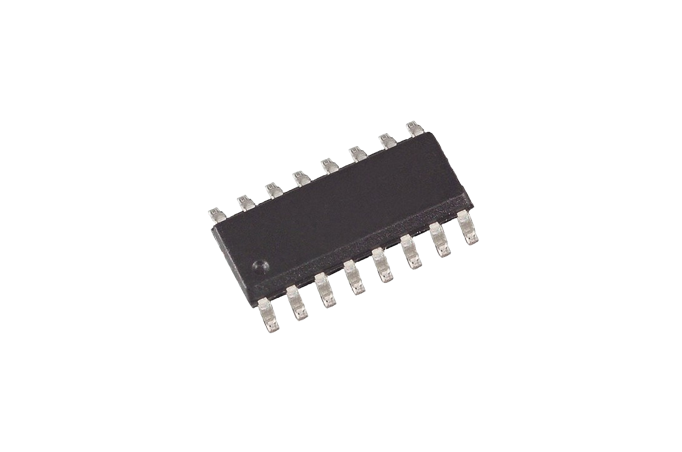

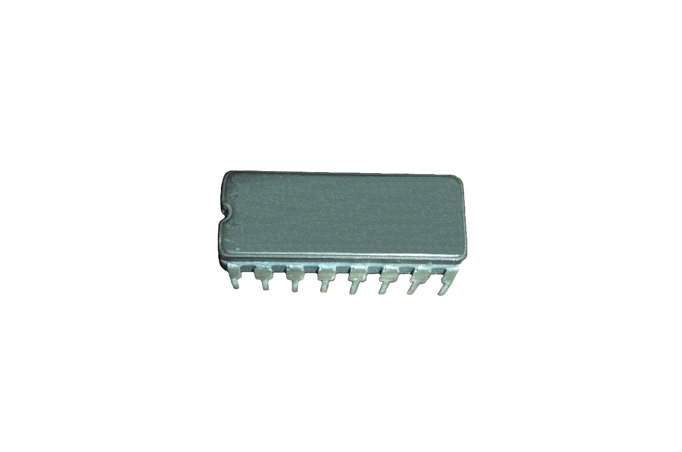

· Available in a 16 Pin SOIC (WB), 16 Pin CERDIP, 16 Lead Ceramic SOP,

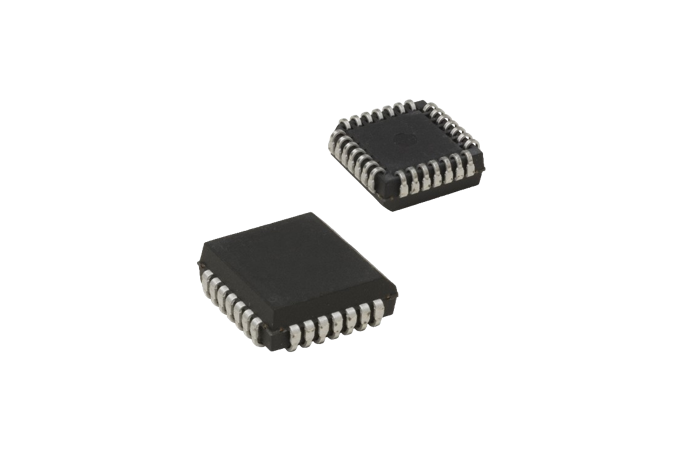

· 28L CLCC and 28L PLCC
· Low EMI RS-422 line driver mode for data rates up to 100 kHz
· Adjustable slew rates via two external capacitors
· Inputs are TTL and CMOS compatible
· Low quiescent power of 125mW (typical)
· Programmable output differential range via VREF pin
· Outputs are fused for failsafe overvoltage protection
· Drives full ARINC load of 400W and 30,000pF
· Extended (-55°C/+85°C) and Military (-55°C/+125°C) temperature ranges
· 100% Final Testing

  • BD429/DEI0429 Family ARINC429/RS-422 Line Driver Datasheet_Revision G Download
