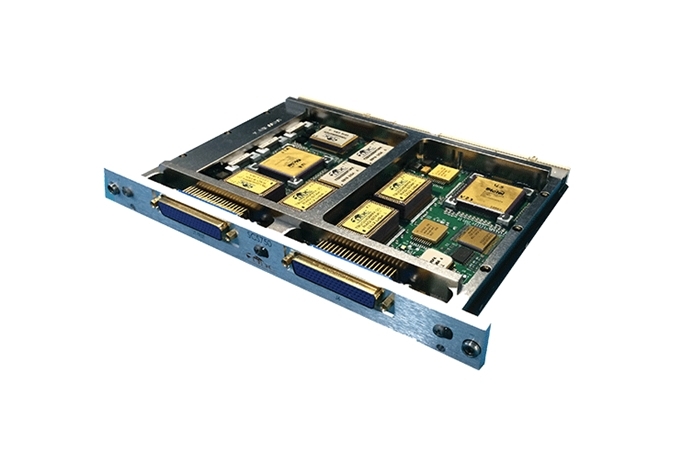

SCS750G4 航天应用单板计算机(SpaceWire,NAND闪存版本)
SCS750G4

DDC's space-proven SCS750® Single Board Computer, featuring the best single event performance, seamless error correction, a wide range of processing power, and the highest design margin, is now available with SpaceWire and NAND Flash. Since inception, more than 15 years ago, our electronic components and single board computers have experienced zero failures in space!



FEATURES

  • Proven in space: TRL-9
  • Wide Range of Operating Capability
    • 200 to 1800 MIPS
    • 7 to 30 Watts Typical
  • Outstanding SBC Radiation Hardness
    • TID Greater than 100krad (Si)
    • SEU Hard; 1 Board Upset Every 80/115 Years (GEO/LEO)
    • SEL Immune
  • VxWorks, RTEMS, and Linux Development Platforms
  • 4 SpaceWire Ports
    • Up to 200Mbps Each
  • Optional 1553 Interface Available
  • 64 GBytes of BCH Corrected NAND Flash
  • SCS750® 航天应用单板计算机产品简介 下载
  • Designing A Single Board Computer For Space 下载
  • How Rad Hard Do You Need? The Changing Approach To Space Parts Selection? 下载
  • Proton Transport An Examination of Model and Experimental Data For Space Environment Protons 下载
