DEI1167 8通道GND/OPEN输入, 并联输出接口IC
DEI1167
  • Eight GND/OPEN discrete inputs
  • Meet electrical requirements for ABD0100 GND/OPEN discrete input.
  • Hysteresis provides noise immunity.
  • Internal pull up resistor
  • Internal isolation diode
  • Inputs protected from Lightning Induced Transients per DO160D, Section 22, Cat A3 and B3.
  • 3.3V or 5V TTL/CMOS compatible digital IO
  • 8 tri-state outputs
  • /CS & /OE control inputs
  • Logic Supply: 3.3V or 5V
  • Analog Supply: 12V

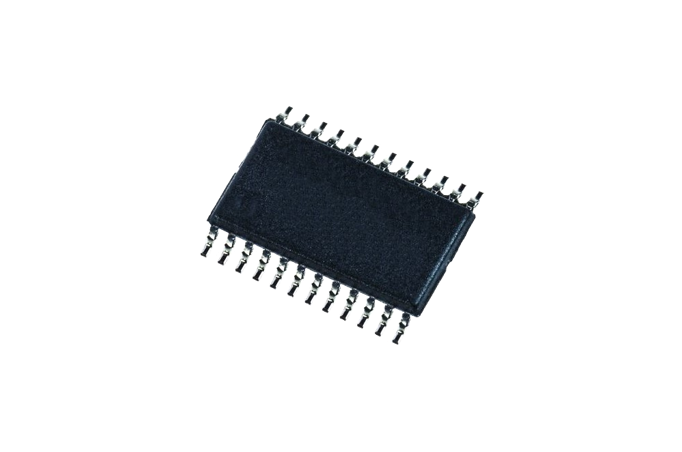

  • 24L TSSOP package
