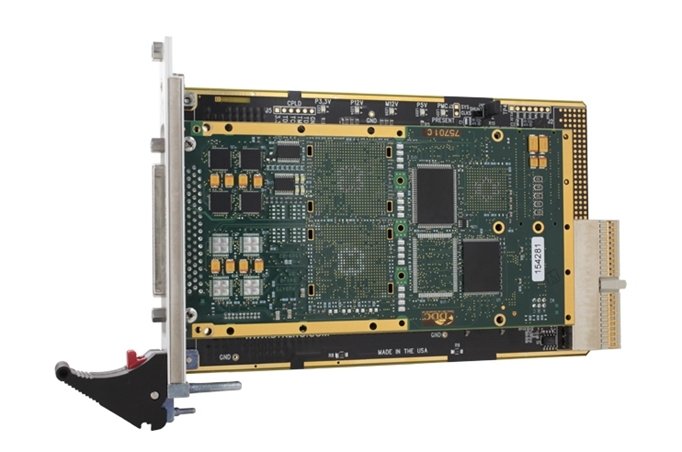

BU-67107I/T AceXtreme® 军标1553 & ARINC429 PCI/cPCI板卡
BU-67107I/T

The BU-67107i/T series contains up to 16 Receive and 4 Transmit ARINC 429 channels and is optionally available with up to four MIL-STD-1553 channels (Multi-IO) for use in systems that interface to both 1553 and 429. The ARINC 429 model is a perfect fit for commercial aerospace applications while the multi-IO model is a perfect fit for military cargo aircraft, helicopters, and other platforms that use both 1553 and 429.

The card includes the AceXtreme® MIL-STD-1553 C Software Development Kit (SDK), and the AceXtreme® ARINC 429 C SDK, along with drivers to support all modes of operation for Linux, VxWorks and Windows 2000/XP/Vista/7/8/10, including source code samples and detailed documentation. A common SDK exists across all operating systems for all cards allowing the programmer portability across different platforms. The BusTrACEr Graphical User Interface is optionally available and has point and click application source code generation capability to reduce risk and shorten development cycles.

BENEFITS

  • PCI and cPCI Form Factors with Cable for Test Environment
  • Proven & Reliable Technology
  • Unique I/O Mix & High Channel Count Reduces:
    • Space, Power, Weight, Cost
  • C Application Code Generation GUI Shortens Development Cycle and Reduces Risk
  • IRIG-106 Chapter 10 On Board Formatting
  • User Selectable BC Disable/Tx Inhibit per 1553 channel
  • On-Board DMA Engine for Low CPU/PCI Utilization

APPLICATIONS

  • Systems Integration Labs
  • Simulators
  • Production Test Labs
  • Box Level Testing and Debugging
  • Software Development
  • Mission Computers
  • Displays
  • Digital Data Recorders
  • Radar Systems Situational Awareness
  • Commercial Aerospace



FEATURES

  • Up to (4) Dual Redundant MIL-STD-1553 Channels
    • BC/Monitor or Multi-RT/Monitor per 1553 Channel
    • Supports MIL-STD-1760
  • Up to (16) Receive and (4) Transmit 429 Channels
  • Up to (6) Digital Discrete I/O
  • Up to (2) RS-232 and (2) RS-422/485 Channels
  • IRIG-B Time Code Input
  • 48-bit/100ns Time Stamp
  • Included Software:
    • High-Level C SDK and Drivers for Linux®, VxWorks®and Windows® 2000/XP/Vista/7/8/10
    • Contact Factory for Other Operating Systems
    • Common Test/Embedded API
  • Graphical Avionics Bus Analysis & Simulation Software Available
    • BusTrACEr MIL-STD-1553 Graphical Monitor/Generator
    • dataSIMS Real-Time Avionics Bus Analysis & Simulation
    • ARINC 429 Data Bus Analyzer
    • ARINC 615 Data Loader
    • 1553/429 LabVIEW® and LabVIEW® Real-Time Package
  • AceXtreme® Next generation 1553 Core
