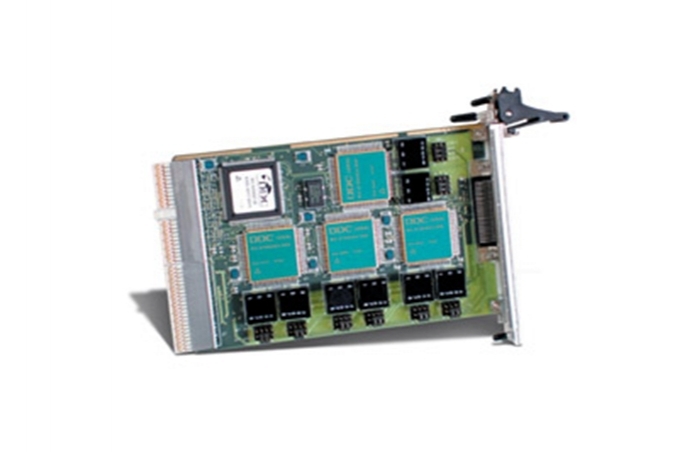

BU-65569T/B 军标1553 cPCI板卡
BU-65569T/B

The BU-65569T/BX is a single-channel or multi-channel MIL-STD-1553 CompactPCI / PMC card. The BU-65569T/BX includes one to four dual redundant 1553 channels on a convection-cooled card.

The BU-65569T/BX is available with front or rear panel I/O. The BU-65569TX has front panel I/O only, where the 1553 signals are routed through the front panel connector. The BU-65569BX has user selectable routing of 1553 signals through the front and/or rear panel connector

The design of the BU-65569T/BX leverages the Enhanced Mini-ACE. Each channel may be independently programmed for BC, RT, Monitor, or RT/Monitor mode.

Advanced architectural features of the Enhanced Mini-ACE include a highly autonomous bus controller, an RT providing a wide variety of buffering options, and a selective message monitor. Each Enhanced Mini-ACE channel incorporates 64K words of RAM, and utilizes 3.3 volt logic to reduce power consumption.





FEATURES

  • 32-bit/33 MHz CompactPCI Card
  • PICMG Certified
  • (1) to (4) Dual Redundant MIL-STD-1553 Channels
  • Enhanced Mini-ACE BC/RT/MT Architecture
  • 64K-word RAM per Channel
  • Highly Autonomous Bus Controller Architecture
  • RT Buffering Options
  • Selective Message Monitor
  • Supports PCI Interrupts
  • VxWorks® Software Driver
  • Linux® Software Support
  • Windows® 95/98/2000/XP and Windows NT® Drivers
