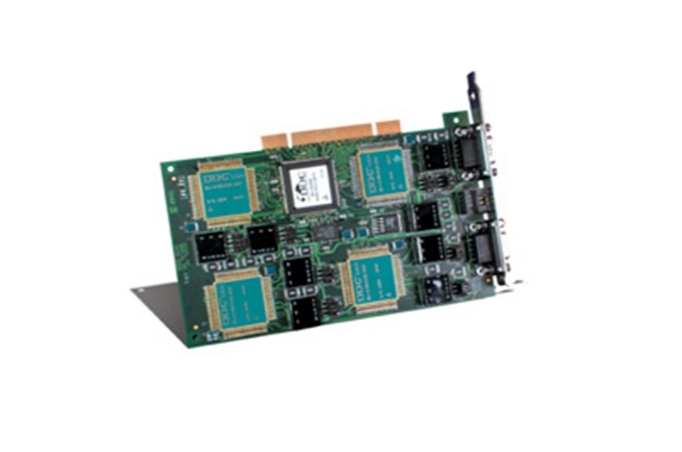

BU-65569I 军标1553 PCI板卡
BU-65569I

The BU-65569iX is a single-channel or multi-channel MIL-STD-1553 PCI card. The BU-65569iX includes one to four dual redundant 1553 channels. The design of the BU-65569iX 1553 PCI card leverages the Enhanced Mini-ACE. Each channel may be independently programmed for BC/RT/Monitor, or RT/Monitor mode.

Advanced architectural features of the 1553 Enhanced Mini-ACE include a highly autonomous bus controller, an RT providing a wide variety of buffering options, and a selective message monitor. Each Enhanced Mini-ACE channel incorporates 64K words of RAM, and utilizes 3.3-volt logic to reduce power consumption.

The BU-65569iX 1553 PCI is supported by free software, including a C library and a Windows 9x/2000/XP, Windows NT, Windows Server 2003, Windows Vista, and Linux driver. The library and driver comprise a suite of C function calls that serves to offload a great deal of low-level tasks from the application programmer. This software supports all of the Enhanced Mini-ACE's advanced architectural features.



FEATURES:

  • (1) to (4) Dual Redundant MIL-STD-1553 Channels
  • Enhanced Mini-ACE BC/RT/MT Architecture
  • Transformer or Direct Coupled 1553 Channels
  • 64K-Word RAM per Channel
  • Highly Autonomous Bus Controller Architecture
  • Message Scheduling
    • Bulk Data Transfers
    • Data Block Double Buffering
    • Asynchronous Messages
    • Retries and Bus Switching
  • RT Buffering Options
    • Single Buffering
    • Double Buffering
    • Subaddress Circular Buffering
    • Global Circular Buffering
  • Selective Message Monitor
  • Supports PCI Interrupts
  • Drivers and Run-Time Library support for Linux®, and Windows® 9x/2000/XP, Windows NT®, Windows Server® 2003, and Windows Vista®.
  • GUI Menus for Windows® 9x/2000/XP and Windows NT®
