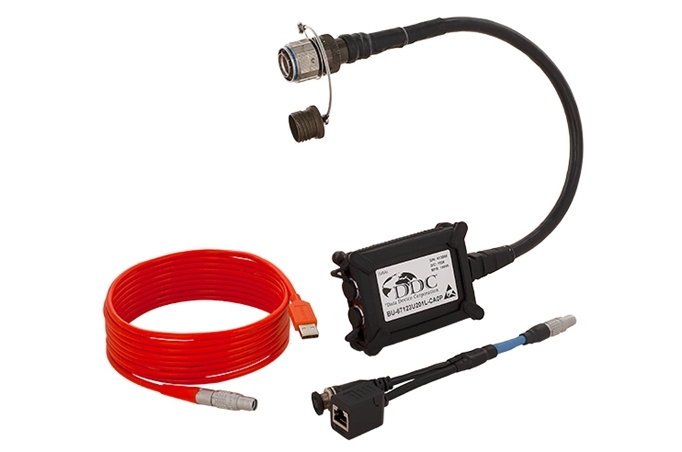

BU-67123 2通道军标1553-USB 维护应用转接器
BU-67123U

The BU-67123U201 is a second generation dual channel USB-to-1553 adapter/module with an improved and more robust design. For use as a portable 1553 programming maintenance adapter, it easily connects to any small embedded system, laptop, or tablet computer. DDC’s industry leading Total-AceXtreme® architecture enables this device to be a world leading compact and SWaP optimized USB-to-1553 maintenance adapter.

BENEFITS

  • Complete hardware and software solution

  • Enables 1553 to be tested or updated on any system

  • Suitable for both embedded and portable applications

  • Proven design leveraged from DDC's widely deployed BU-67113U USB board

  • Save time and reduce cost

    • Common test/embedded API for rapid prototyping with less programming time

    • Program in minutes with BusTrACEr™ automated  application C code generation

  • IRIG-106 Chapter 10 on board formatting

  • On board DMA engine for low CPU utilization

  • Qualified and RT validated Applications

APPLICATIONS

  • Rugged small embedded systems

  • Laptops or tablets

  • Bus troubleshooting

  • Flight-line test and diagnostic

  • Hand held test equipm

  • Small displays



FEATURES

Performance

  • Compact, rugged design

  • Rugged standard 38999 connector

  • Ultra low power: 3.5W (50% duty cycle)

  • USB interface – ideal for use with desktops/laptops

  • Power and Ethernet feedthroughs

  • Quick disconnecting cables

Functionality

  • Two dual redundant MIL-STD-1553 channels

    • BC/MT or Multi-RT/MT per channel

    • Supports MIL-STD-1553A/B and MIL-STD-1760

  • 48-Bit/100ns time stamp

  • ACE TREME® - Next generation 1553 ASIC

Environmental

  • MIL-STD-810 Compliance for Shock, Vibration etc.
  • MIL-STD-461 Compliance for EMI/EMC
  • Weight
    • <1lb (453g) (without accessory cables)
    • <1.5lbs (680.4g) (with accessory cables)
  • Temperature
    • Operating: -40 °C to +71 °C
    • Storage: -55 °C to +105 °C
