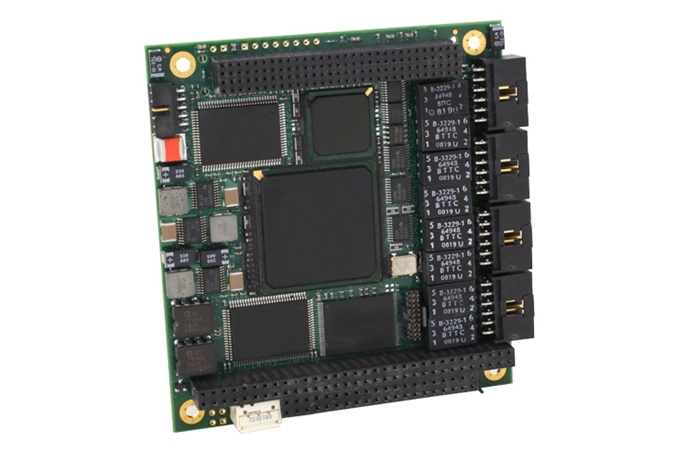

BU-67108/9 AceXtreme® 军标1553 & ARINC429 PC/104-Plus/PCI-104板卡
BU-67108C/BU-67109C

The BU-67108/9C series contains up to 16 Receive and 8 Transmit ARINC 429 channels and is optionally available with up to 2 MIL-STD-1553 channels (Multi-IO) for use in systems that interface to both 1553 and 429. The ARINC 429 model is a perfect fit for commercial aerospace applications while the multi-IO model is a perfect fit for military cargo aircraft, helicopters, and other platforms that use both 1553 and 429.

Each 1553 channel can emulate a Bus Controller (BC), multiple Remote Terminals (RTs), a Bus Monitor (MT), BC/MT, or Multi-RT/MT modes independently per 1553 channel.

The card includes the AceXtreme® MIL-STD-1553 C Software Development Kit (SDK), and the ARINC 429 C SDK, along with drivers to support all modes of operation for Linux, VxWorks and Windows 2000/XP/Vista/7/8/10, including source code samples and detailed documentation. A common SDK exists across all operating systems for all cards allowing the programmer portability across different platforms. The BusTrACEr Graphical User Interface is optionally available and has point and click application source code generation capability to reduce risk and shorten development cycles.

BENEFITS

  • Rugged Design for Harsh Environments
  • Proven & Reliable Technology
  • Unique I/O Mix & High Channel Count Reduces:
    • Space, Power, Weight, Cost
  • C Application Code Generation GUI Shortens Development Cycle and Reduces Risk
  • IRIG-106 Chapter 10 On Board Formatting
  • User Selectable BC Disable/Tx Inhibit per 1553 channel
  • On-Board DMA Engine for Low CPU/PCI Utilization

APPLICATIONS

  • Digital Flight Data Recorders
  • Telemetry Instrumentation Recorders
  • Mission Computers
  • Small Avionics Displays
  • Line Replaceable Units (LRUs)
  • Radar Systems Situational Awareness
  • Munitions
  • Ground Vehicles
  • Avionics Labs



FEATURES

  • Up to (2) Dual Redundant MIL-STD-1553 Channels
    • BC/Monitor or Multi-RT/Monitor per 1553 Channel
    • Supports MIL-STD-1760
    • Transformer and/or direct coupled
  • Up to (16) Receive and (8) Transmit 429 Channels
  • Up to (9) Digital Discrete I/O
  • Up to (8) +35V Avionics Discrete I/O
  • IRIG-B Time Code Input/Output
  • 48-bit/100ns Time Stamp
  • +5V only operation
  • Included Software:
    • High-Level C SDK and Drivers for Linux®, VxWorks®, and Windows® 2000/XP/Vista/7/8/10
    • Contact Factory for Other Operating Systems
    • Common Test/Embedded API
  • Graphical Avionics Bus Analysis & Simulation Software Available
    • BusTrACEr MIL-STD-1553 Graphical Monitor Generator
    • dataSIMS Real-Time Avionics Bus Analysis & Simulation
    • ARINC 429 Data Bus Analyzer
    • ARINC 615 Data Loader
    • 1553/429 LabVIEW® and LabVIEW® Real-Time Package
  • AceXteme® Next generation 1553 Core
