Lighting Control

Model No.:DEI1030
DEI1030 Lighting Bus Mapping Circuit
Reduced part count
True RMS Conversion

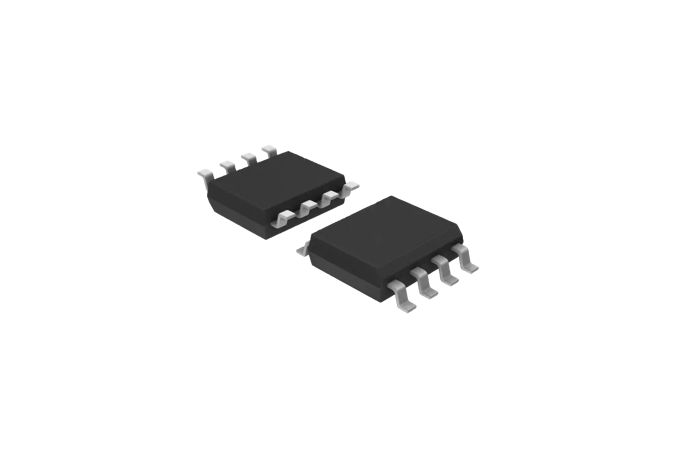

Small foot print (8L-SOIC-NB)
Wiring harness programmable
Reduces multiple bus interfaces
Stable over temperature
DO 160C/D Category A3 Lightning Protection
Works with 5VAC, 5VDC, 14VDC and 28VDC busses
Model No.:DEI1090
DEI1090 Lamp Driver & LED Dimmer for Avionics & PWM LED Driver
Emulates incandescent lamp "Square Law" luminance curve.
LED dimming controlled by Pulse Width Modulation ranging from 50HZ to 200HZ.
LED current adjustable from 10mA to 20mA.
200:1 Dimming Range at 50Hz. 40:1 Dimming Range at 200Hz
Drives 8 LED outputs with the matched current drive.
Drivers can be cascaded to synchronously drive additional LEDs.
Plastic 16 lead SOIC package.
