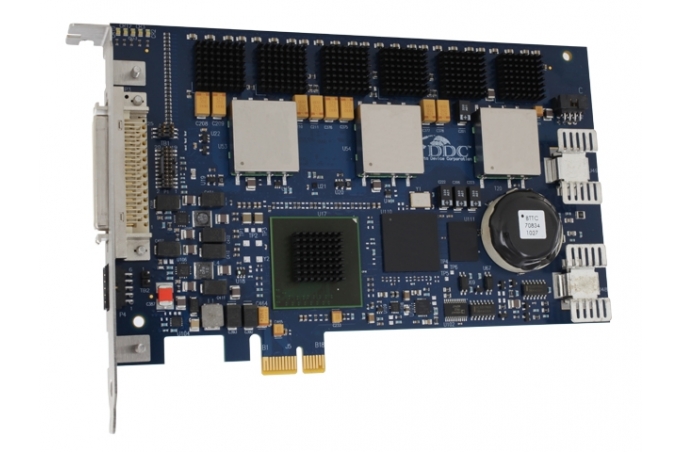

SB-3623x 4/6 Channels PCI-e Digital to Synchro/Resolver Board[D-S]
SB-3623x
  • Save on Maintenance Costs, No Calibration Required
  • 4 or 6 Synchro/Resolver Output Channels each with Independent Reference Input
  • Accuracy to 30 Arc Seconds
  • Up to 15 mA max Output Drive
  • Programmable Dynamic Rotation (up to 7099 rps)
  • Programmable Two-Speed Simulation
  • On-Board Reference Sine Oscillator with 1.5 VA Output Drive
  • Transformer Isolation Available for 90V Synchro Output
  • Over-Current/Over-Temperature Protection
  • Loss-of-Reference Detection
  • Drivers, API Library, and GUI for Windows® XP/Vista/7 (32-bit and 64-bit)
  • RoHS Compliant and Lead-free
