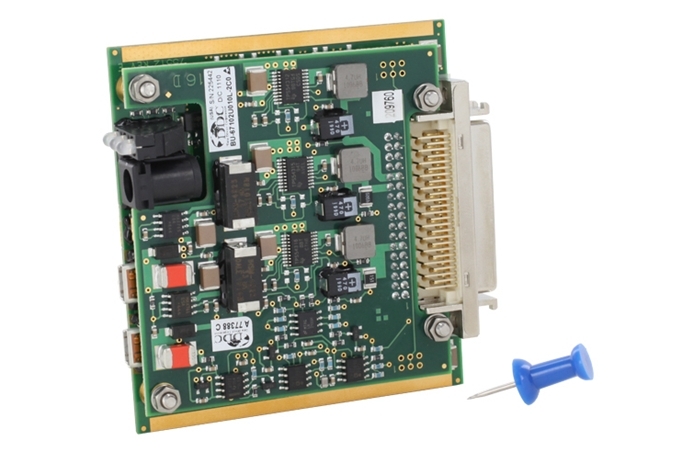

BU-67102Ux1 Small Form Factor USB MIL-STD-1553 and ARINC 429 Board
BU-67102Ux1

This small form factor USB board allows up to 2 dual-redundant MIL-STD-1553 channels and/or 4 Receive/2 Transmit ARINC 429 channels to be easily added to any system with a USB connection to provide a light weight, small size, rugged, and reliable bus interface. The board can meet rugged levels of shock and vibration, along with a maximum temperature range of -40°C to +85°C. The board is available as 1553 only, 429 only, or combination 1553/429 Multi-I/O to save space, power, weight, and cost for systems that need both 1553 and 429.

BENEFITS

  • Complete Hardware and Software Solution
  • Small Form Factor with USB 2.0 Interface is ideal for:
    • Desktops, Laptops, and Tablet Computers
    • Any Embedded Box with a USB Port
  • MIL-STD-1553 and ARINC 429 Connectivity in One Device
  • Suitable for Both Embedded and Portable Applications
  • Save Time and Reduce Costs:
    • Common Test/Embedded API for Rapid Prototyping with Less Programming Time
    • Program in Minutes with BusTrACEr Automated Application C Code Generation
  • IRIG-106 Chapter 10 On-Board Formatting
  • On-Board DMA Engine for Low CPU Utilization

APPLICATIONS

  • Rugged Small Embedded Systems
  • Laptops or Tablets
  • Bus Troubleshooting
  • Diagnostic Systems
  • Hand Held Test Equipment
  • Small Displays



FEATURES

  • Small Form Factor
    • Conduction or Air Cooled
    • 3 inches x 2.97 inches (76.2 mm x 75.4 mm)
    • USB 2.0 Host Interface
  • Up to 2 Dual Redundant MIL-STD-1553 Channels
    • BC/MT or Multi-RT/MT per Channel
    • Supports MIL-STD-1553 A/B
    • Transformer and/or Direct Coupled
    • BC Disable for RT Only Applications
    • Tx Inhibit for MT Only Applications
  • Up to 4 Receive and 2 Transmit ARINC 429 Channels
    • High/Low Speed Operation
    • Multiple Reception and Transmission Methods
    • Supports other ARINC Standards
  • 8 Digital Discrete I/O
  • IRIG-B Time Input & 1 Pulse-Per-Second Output
  • 48-bit/100nS Time Stamp
  • High-Level C Software Development Kits for Windows® XP/Vista/7/8/10 and Linux®
  • Graphical Avionics Bus Analysis and Simulation Software Available
    • BusTrACEr MIL-STD-1553 Graphical Monitor/Generator
    • dataSIMS Real-Time Avionics Bus Analysis & Simulation
    • ARINC 429 Data Bus Analyzer
    • ARINC 615 Data Loader
    • 1553/429 LabVIEW® and LabVIEW® Real-Time Package
  • AceXtreme® Next generation 1553 Core
