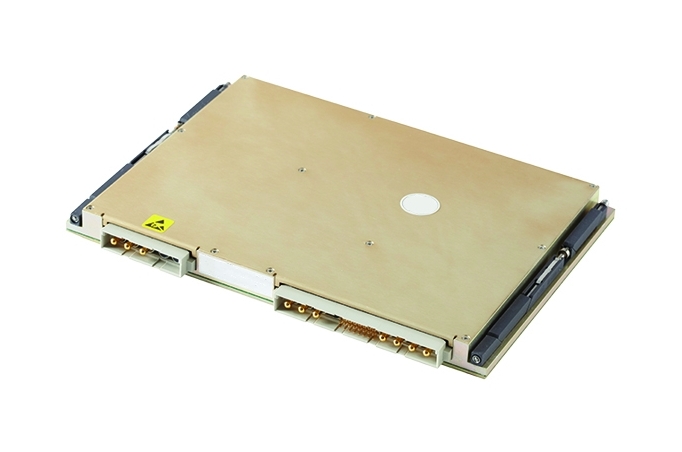

VM-11918 VME Power Supply Single Slot 250W [AC-DC]
VM-11918
  • Input Voltage 85 – 135 Vrms AC, Single Phase 320 – 480Hz
  • MIL-STD-704E, all transient conditions excluding under voltage surge of Figure 6. BS2G100 and BS3G100 excluding limits 2 & 4 * RTCA DO-160D excluding line dropouts >4ms *
    * Additional external hold-up will be required.
  • ACFAIL*, SYRESET* as per ANSI /VITA 1-1994. Recommended pull up to +5V via a 5Kohm resistance.
  • 250W, 5V/30A, 3.3V/10A, ±12V/2.5A, 5V STANDBY/0.1A
  • Isolation:  Input to Output >50 Mohms+@1500Vrms AC
                           Input to Chassis >50 Mohms+@1500Vrms AC
                          Output to Chassis >10 Mohms+@100Vdc
  • Full specified performance with the card edge temperature maintained within the range –55ºC to +85ºC
  • Storage Temperature: -55ºC to +105ºC
