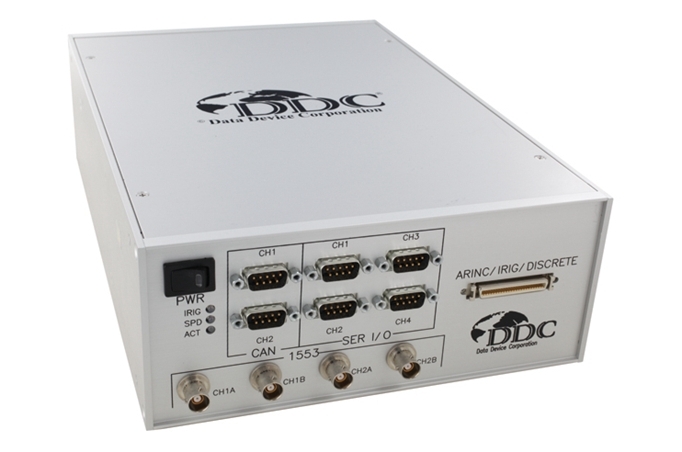

BU-67211 Multi-I/O 1553/429/717 Advanced Avionics Tester
BU-67211U

Reliable and easy-to-use, DDC's USB Multi-I/O Test and Simulation Hardware series provides you with the right solution for interfacing to MIL-STD-1553, ARINC 429, ARINC 717, CANbus, Serial I/O, and/or Discrete I/O interfaces.

BENEFITS

  • Simplify Form Factor Selection Process with a simple USB 2.0 interface, Enabling Connection Anywhere USB Ports are Present.
  • Standard Twinax Connectors for Quick 1553 Bus Hookup
  • Save Time and Reduce Costs:
    • Common Software API for both DDC Test and Embedded Products for Rapid Prototyping with Less Programming Time
    • Program in Minutes with Automated Application Source Code Generation

APPLICATIONS

  • New Product Development
  • System Troubleshooting
  • Portable Testers
  • Flight Line Diagnostics
  • Flight Testing
  • Software Development
  • Systems Integration Labs
  • Simulators
  • Production Test Stands
  • Automated Test Applications



FEATURES

  • Rack-Mountable Box Hardware
  • Standard Twinax MIL-STD-1553 Rugged Connectors
  • Up to 2 Dual Redundant MIL-STD-1553 Channels
    • Multi-Function: BC+Multi-RT+Monitor Operation
    • Test and Simulation Toolkit:
      • 1553 Bus Playback from Stored Monitor File
      • Digital/Avionic I/O Trigger Capability
      • Real Time Intermessage Event/Data Modification
      • Error Injection
      • Variable Voltage Capability
      • Intermessage Gap & RT Response Time as low as 3.5 µs
  • Programmable Direct or Transformer 1553 Coupling
  • 8 Programmable Rx/Tx ARINC-429 Channels
  • 2 Programmable Rx/Tx ARINC-717 Channels
  • 2 CANbus 2.0 Channels
  • 4 Programmable RS-232/422/485 Serial I/O Channels
  • 2 Digital and 2 Avionics-Level Discrete I/O
