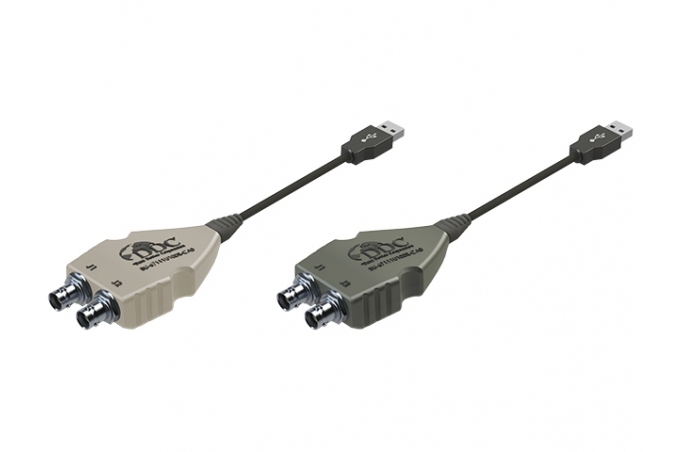

BU-67111 USB to MIL-STD-1553 Adapter
BU-67111

Key Features
Performance
• Small form factor USB adapter
• USB 2.0
• Powered via USB interface
• Utilizes DDC AceXtreme® engine
Functionality
• One dual redundant MIL-STD-1553 channel
- Supports MIL-STD-1553A/B/C
- BC/MT or Multi-RT/MT
• 48-bit/100ns time stamp
Environmental/Mechanical
• Temperature range: -20°C to +60°C operation
(-40°C to +85°C storage)
• Weight: <1 lb.
• MIL-STD-810G
- Shock: Method 516.7, Procedure IV
- Vibration: Method 514.7, Procedure II
- Altitude (12,500 feet): Method 500.6, Procedure II
- Humidity (95%): Method 507.6, Procedure II
- Sand & Dust: Method 510.6, Procedure I&II
- Blowing Rain: Method 506.6, Procedure I
• Standard BJ77 triaxial connectors facilitate

MIL-STD-1553 interface
• Durable plastic housing
