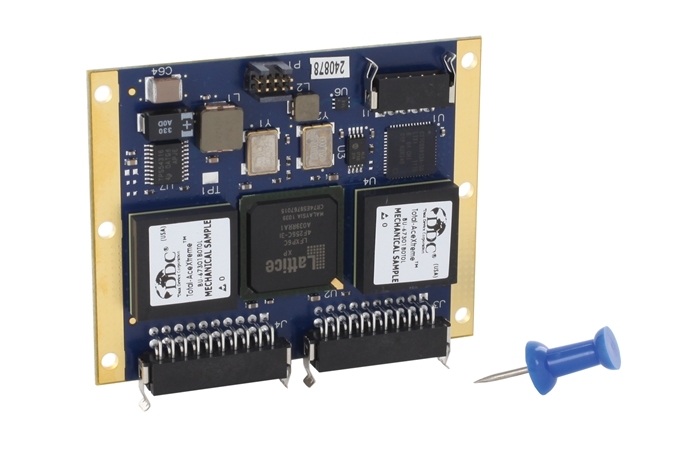

The small form factor USB board allows up to two dual redundant MIL-STD-1553 channels to be easily added to any small embedded system, laptop, or tablet computer, to provide a cost effective, light weight, small size, rugged, and reliable 1553 bus interface. These boards are designed with unique DDC components based on ASICs to allow for the world's smallest size and lowest power.

Benefits:

• Miniature Size USB to 1553 Board
  • 49.8 mm x 63.5 mm (1.96 in. x 2.50 in.)
• Complete Hardware and Software Solution
• Enables 1553 to be Added to Any System
• Suitable for Both Embedded and Portable Applications
• Save Time and Reduce Cost
  • Common Test/Embedded API for Rapid Prototyping with Less Programming Time
  • Program in Minutes with BusTrACEr Automated Application C Code Generation
  • IRIG-106 Chapter 10 On Board Formatting
  • On Board DMA Engine for Low CPU Utilization
  • Qualified and RT Validated

Applications:

• Rugged Small Embedded Systems
• Laptops or Tablets
• Bus Troubleshooting
• Diagnostic Systems
• Hand Held Test Equipment
• Small Displays

FEATURES

• Small Form Factor USB Board
• Very High Reliability (MTBF)
• Ultra Low Power
• Comprehensive Built-In Self Tests
• Up to Two Dual Redundant MIL-STD-1553 Channels
  • BC/MT or Multi-RT/MT per Channel
  • Supports MIL-STD-1553A/B and MIL-STD-1760
  • BC Disable for RT Only Applications
  • Tx Inhibit for MT Only Applications
  • BC External Trigger SS Flag
• 8 Digital Discrete I/O
• IRIG-B Time Input
• 48-Bit/100ns Time Stamp
• High-Level C Software Development Kits for Windows® XP/Vista/7/8/10, Linux®, & VxWorks®
• Graphical Avionics Bus Analysis & Simulation Software Available
  • BusTrACEr MIL-STD-1553 Graphical Monitor/Generator
  • dataSIMS Real-Time Avionics Bus Analysis & Simulation
  • 1553 LabVIEW® and LabVIEW® Real-Time Package
• Next generation 1553 Core
• RoHS or Leaded Versions
