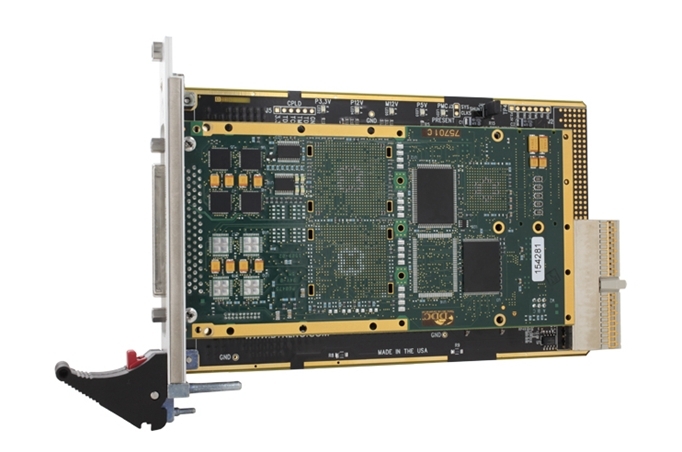

BU67x10I/T AceXtreme® SF/MF MIL-STD-1553 PCI/cPCI Cards
BU-67110I/T,BU-67210I/T

The BU-67X10i/T series contains up to eight dual redundant MIL-STD-1553 channels and is a perfect fit for military aerospace applications. The PCI and cPCI versions offer front panel I/O and include a cable to easily interface to all 1553 channels. The unique I/O mix and high channel count on a single card saves space, power, weight, and cost—making this an ideal solution for systems with limited space.

The card includes the AceXtreme® MIL-STD-1553 C Software Development Kit (SDK) and drivers to support all modes of operation for Linux, VxWorks and Windows 2000/XP/Vista/7/8/10, including source code samples and detailed documentation. A common SDK exists across all operating systems for all cards allowing the programmer portability across different platforms. The BusTrACEr Graphical User Interface is optionally available and has point and click application source code generation capability to reduce risk and shorten development cycles.

BENEFITS

  • Rugged PMC Design for Harsh Environments
  • Available in PCI and cPCI/PXI Form Factors with Cable for Test Environment
  • Unique I/O Mix & High Channel Count Reduces:
    • Space, Power, Weight, Cost
  • Shorten Development Cycle and Reduce Risk with Automated Code Generation
  • IRIG-106 Chapter 10 On Board Formatting
  • On-Board DMA Engine for Low CPU/PCI Utilization

APPLICATIONS

  • Mission Computers
  • Displays
  • Digital Data Recorders
  • Radar Systems/Situational Awareness
  • Commercial Aerospace
  • Ground Maintenance
  • Systems Integration Labs
  • Simulators
  • Production Test Labs
  • System Troubleshooting
  • New Product Development



FEATURES

  • Up to (8) Dual Redundant MIL-STD-1553 Channels
    • Single-Function: BC/MT or Multi-RT/MT
    • Multi-Function: BC + Multi-RT + MT
    • 1553 Bus Playback on All Models
    • Supports MIL-STD-1553 A/B & MIL-STD-1760
    • Transformer and/or direct coupled
    • BC Disable for RT Only Applications
    • Tx Inhibit for MT Only Applications
    • 2 External RT Address Inputs
  • Test and Simulation Toolkit (BU-67210 series only)
    • Variable Voltage Output on Front I/O Models
    • Digital/Avionics Discrete I/O Trigger Capability
    • Real Time Intermessage Event/Data Modification
    • Error Injection
    • Intermessage Gap & RT Response Time as low as 3.5 µs
  • Up to (8) Digital & (16) Avionics Discrete I/O
  • IRIG-B Time Code Input/Output
  • 48-bit/100ns Time Stamp
  • Low Power Dissipation
  • RoHS or Leaded Versions
  • AceXtreme® Next generation 1553 Core
  • Included Software:
    • High-Level C SDK and Drivers for Linux®, VxWorks® and Windows® 2000/XP/Vista/7/8/10
    • Contact Factory for Other Operating Systems
    • Common Test/Embedded API
  • Graphical Avionics Bus Analysis & Simulation Software Available
    • BusTrACEr MIL-STD-1553 Graphical Monitor/Generator
    • dataSIMS Real-Time Avionics Bus Analysis & Simulation
    • 1553 LabVIEW® and LabVIEW® Real-Time Package
  • AceXtreme® Next generation 1553 Core
