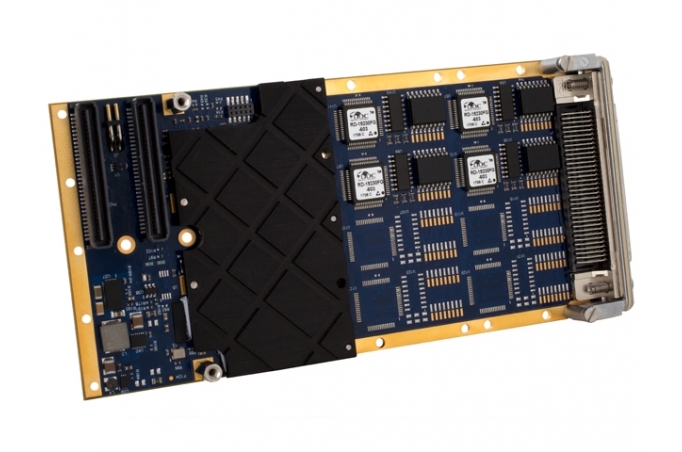

SB-3642x 4/8 Channels PMC Synchro/Resolver to Digital Board[S-D]
SB-3642x
  • 4 or 8 Synchro or Resolver input channels each with independent reference input
  • Accuracy to 1 arc minute, +1 LSB
  • Programmable resolution and bandwidth
  • Incremental encoder emulation (A Quad B)
  • Available for Front I/O only or Front/Rear combination I/O (SB-3641)
  • Programmable two-speed mode
  • 4 Discrete Inputs and 4 Discrete Outputs
  • Common Motion Feedback library for Windows, Linux, and LabVIEW
  • User-friendly Windows Graphical User Interface
  • Voltage scaling for external reference signals, 2V to 120V
  • Up to 16 Bit angle resolution
  • RoHS Compliant
