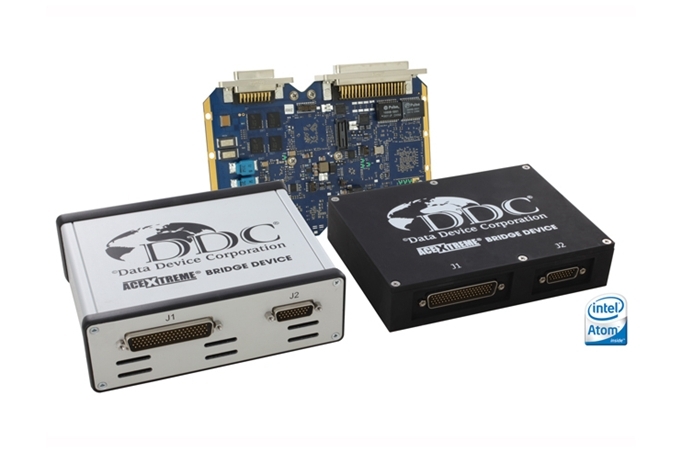

BU-67115/6/9 AceXtreme® Bridge Device
BU-67119, BU-67116, BU-67115

DDCs AceXtreme Bridge Device converts avionics messages in real time between Ethernet, MIL-STD-1553, and ARINC-429, in any direction, without a host computer.

BENEFITS

  • SWaP-C Optimized... Saves Installation Time and Cost
  • No Host Computer Required
  • Onboard Processor Enables Application Programming Flexibility
  • Accomodates Large Data Buffering
  • Compatible with 28V Aircraft and Ground Vehicle Power
  • Simplifies Data Bus Cabling
  • Turnkey Bridging Software

APPLICATIONS

  • Upgrade & Retrofit
  • Protocol Conversion
  • Mission Computers
  • Displays
  • Test & Systems Integration
  • Situational Awareness
  • Simulators
  • Data Loading
  • Data Monitoring



FEATURES

  • Bridge Between Ethernet, MIL-STD-1553, and/or ARINC 429
  • Remote Access to 429 or 1553 Data via Ethernet
  • Low Power 1GHz Intel Atom Processor
  • 8 GB Solid-State Drive
  • IP67 Rugged D Connectors
  • 28V Power (MIL-STD-704 & MIL-STD-1275)
  • MIL-STD-810 Shock, Vibration, Humidity, and Altitude Testing
  • MIL-STD-461 EMC
  • Expansion Site Inside: Contact DDC for Other I/O
  • Bridging Software API
  • BU-6711XWX AceXtreme Bridge Device Product Brief Download
  • BU-6711XWX AceXtreme® Bridge Device Quick Start Guide Download
  • BU-6711XWX AceXtreme® Bridge Device Hardware Manual Download
  • BU-69094SX AceXtreme® Bridge Device SDK Software User's Manual Download
