Model No.:SBA-35xxx

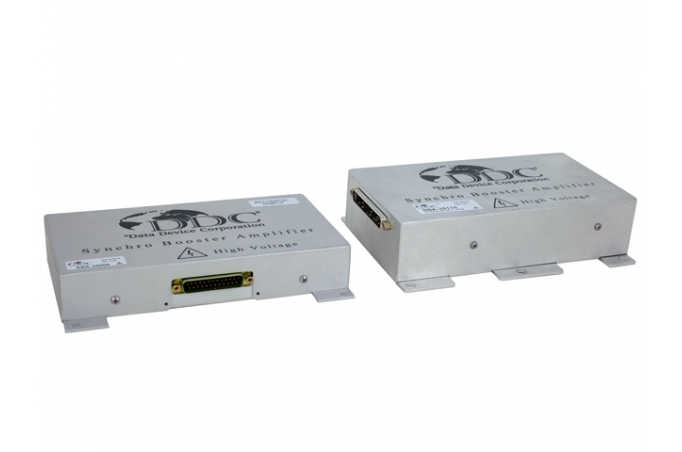

SBA-35xxx High Power Booster Amplifier

90V, 60 or 400Hz Synchro Outputs
25VA Output Drive
Amplifies 90V Synchro, 6.81V, 5V, and 2V Resolver Inputs

Model No.:SB-3644x

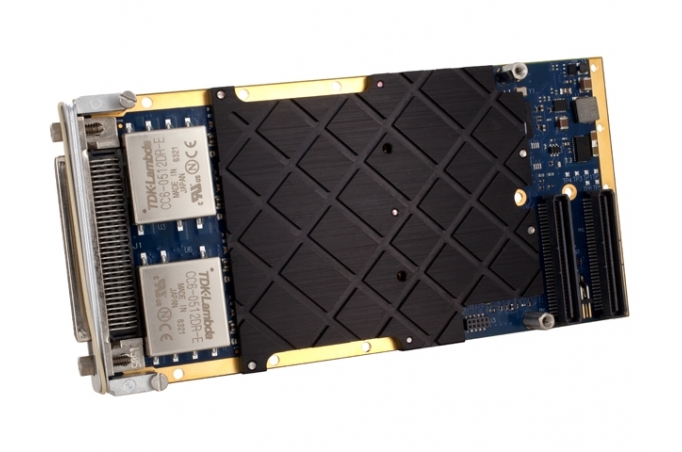

SB-3644x 4 Channels PMC Digital to Synchro/Resolver Board[D-S]

4 Synchro Resolver output channels each with independent reference input
Accuracy to 1 arc minute
4 Discrete Inputs and 4 Discrete Outputs
Up to 16 Bit angle resolution
VITA-47 Shock and Vibration Tested

Model No.:SB-3623x

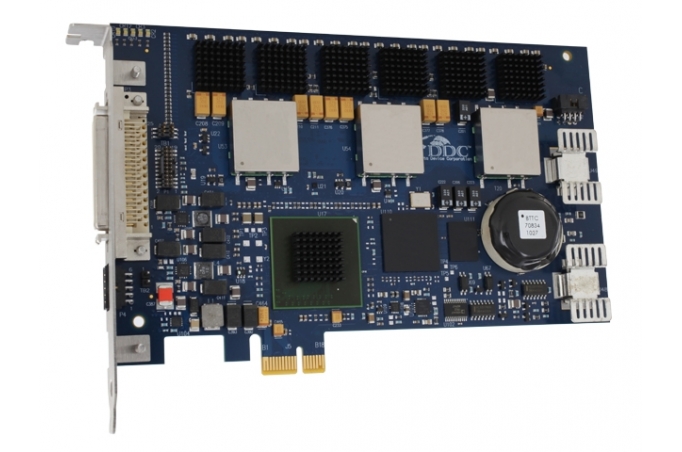

SB-3623x 4/6 Channels PCI-e Digital to Synchro/Resolver Board[D-S]

4 or 6 Synchro/Resolver Output Channels each with Independent Reference Input
Accuracy to 30 Arc Seconds
Up to 16 Bit angle resolution
On-Board Reference Sine Oscillator with 1.5 VA Output Drive

Model No.:SB-3642x

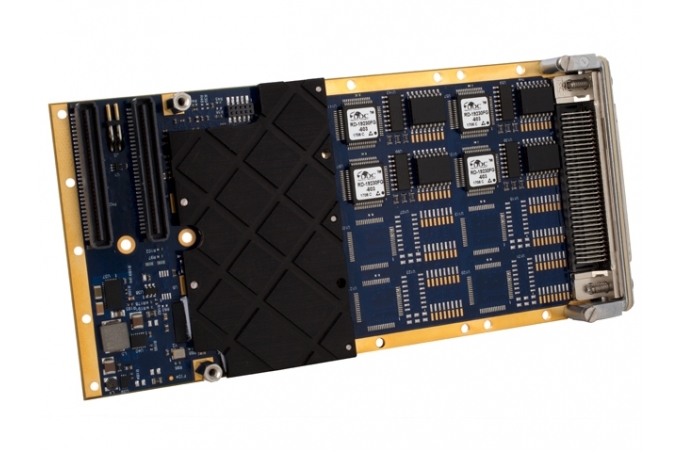

SB-3642x 4/8 Channels PMC Synchro/Resolver to Digital Board[S-D]

4 or 8 Synchro or Resolver input channels each with independent reference input
Accuracy to 1 arc minute, +1 LSB
Up to 16 Bit angle resolution
4 Discrete Inputs and 4 Discrete Outputs
Designed to meet or exceed VITA-47 shock/vib specifications

Model No.:SB-3625x

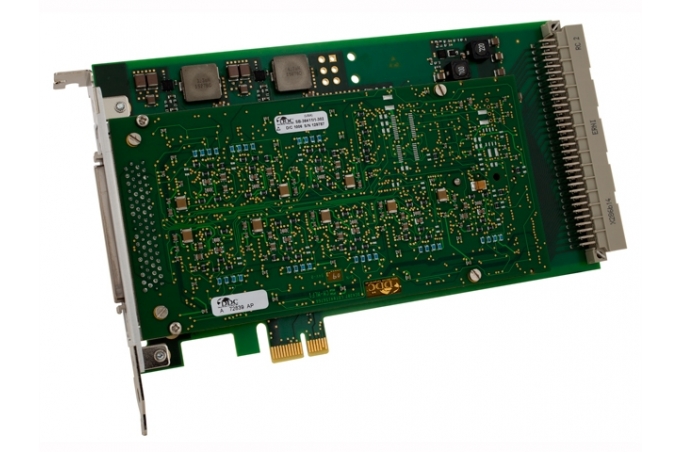

SB-3625x 4/8 Channels PCI-e Synchro/Resolver to Digital Board[S-D]

4 or 8 Synchro Resolver Input Channels Each with Independent Reference Input
Accuracy to 1 Arc Minute
Up to 16 Bit angle resolution

Model No.:SB-3661x

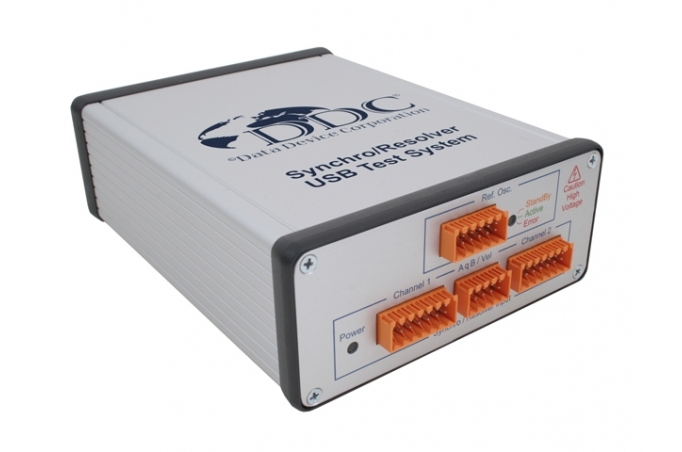

SB-3661x Portable USB 2 Channels Synchro/Resolver to Digital Box[S-D]

2 Synchro or Resolver input channels each with independent reference input
Accuracy to 1 Arc Minute
Up to 16 Bit angle resolution
On-Board Programmable Reference Sine Oscillator
