Multi-Protocol Boards/Boxes (1553,429,DIO,Serial,CAN)

DDC's High Density, Scalable, Multi-Protocol Connectivity solutions enable one board or box to replace many, to support MIL-STD-1553, ARINC 429/717, RS-232/422/485 Serial I/O, CANbus & Discrete I/O.

Model No.:BU-67125W

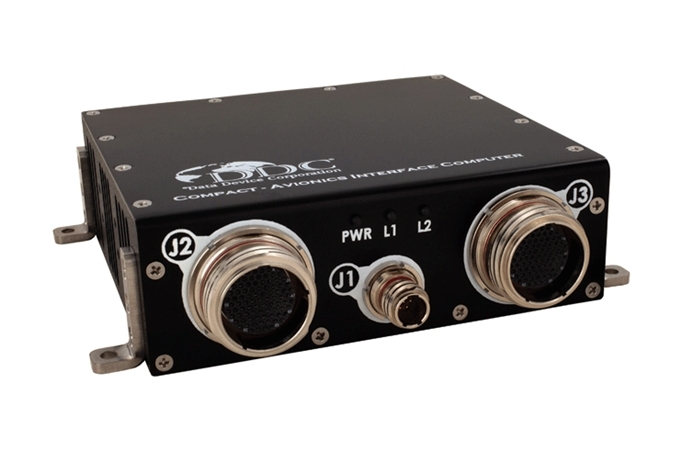

BU-67125W Compact Avionics Interface Computer (C-AIC)

Form Factor: Avionics Computer
Protocols: ARINC 429/717, MIL-STD-1553, CANbus 2.0, Ethernet, Serial I/O
Modes: Bridging Mode; Remote Access Mode; Standalone
Features:HD Audio, DVI Video, 4GB RAM, Rugged, Up to 512GB SSD, Intel® Atom™ E3845, USB 2.0, GPIO, mPCIe (2), Configurable
OS: Linux, VxWorks, Windows

Model No.:BU-67124W

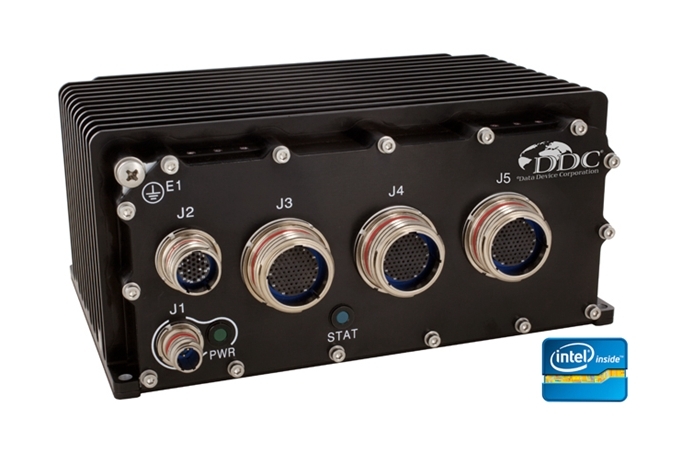

BU-67124 Rugged Avionics Interface Computer (R-AIC)

Form Factor: Avionics Computer
Protocols: ARINC 429/717, MIL-STD-1553, CANbus 2.0, Ethernet, Serial I/O
Modes: Bridging Mode; Remote Access Mode; Standalone
Features: HD Audio, 16GB RAM, Rugged, Up to 2TB SSD, VGA Video, HDMI Video, Intel® Core i5™, USB 2.0, USB 3.0, GPIO, mPCIe (2), XMC Slot, Configurable
OS: Linux, VxWorks, Windows

Model No.:BU-67121W

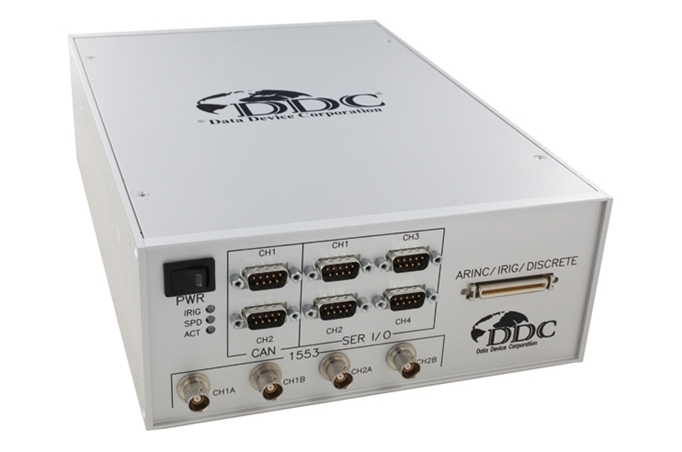

BU-67121 Lab Avionics Interface Computer

Form Factor: Avionics Computer
Protocols: ARINC 429/717, MIL-STD-1553, CANbus 2.0, Ethernet, Serial I/O
Modes: Bridging Mode; Remote Access Mode; Standalone
Features: 2GB RAM, 30GB SSD, Lab, VGA Video, Intel® Atom™ E3845, USB 2.0, GPIO, mPCIe (2), PMC (2), Configurable
OS: Linux, VxWorks, Windows

Model No.:BU-67119/BU-67116/BU-67115

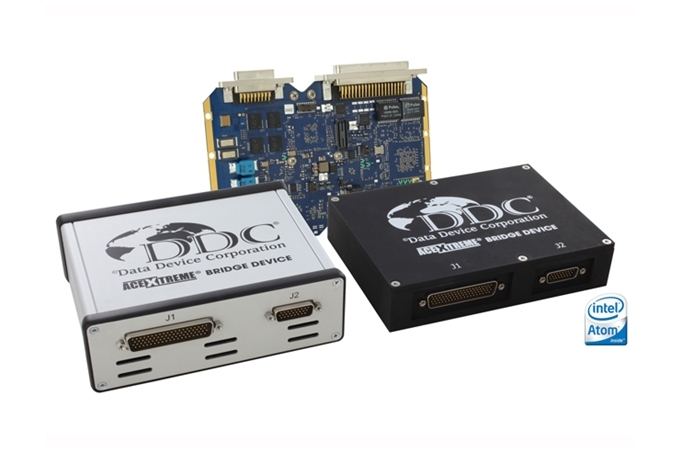

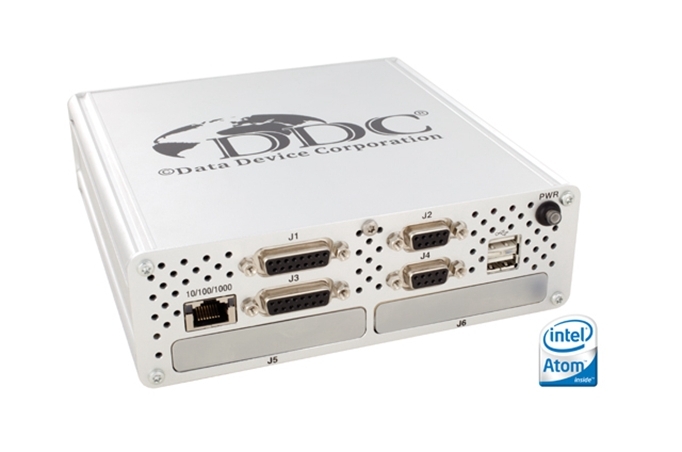

BU-67115/6/9 AceXtreme® Bridge Device

Form Factor: Avionics Computer
Protocols: ARINC 429, MIL-STD-1553, MIL-STD-1553/1760, Ethernet
Modes: Bridging Mode; Remote Access Mode
Features: Rugged, 8GB SSD, Lab, 512MB RAM, Intel® Atom™ E640T, GPIO
OS: Linux, VxWorks, Windows

Model No.:BU-67118Z

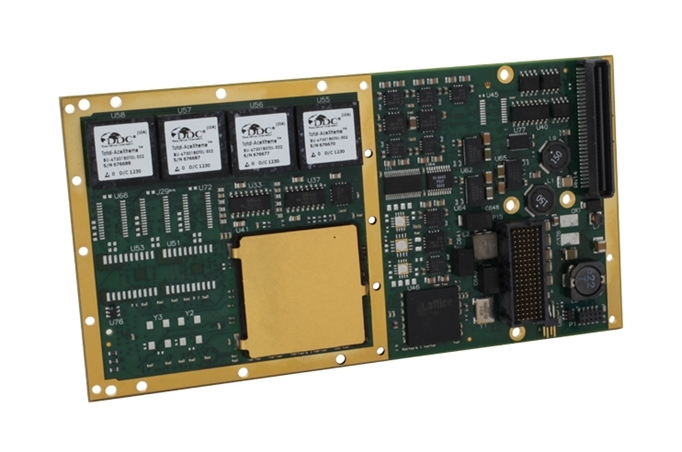

BU-67118 Multi-Channel Multi-Protocol Avionics XMC and PMC Cards

Form Factor: PMC, XMC
Protocols(Max. Ch): 1553/1760 (4), 429 Rx/Tx Prog (20), 717 Rx/Tx Prog (2), CANbus 2.0 (2), Serial I/O (8)
OS: Integrity, Linux, VxWorks, Windows

Model No.:BU-67102U/BU-67202U/BU-67103U

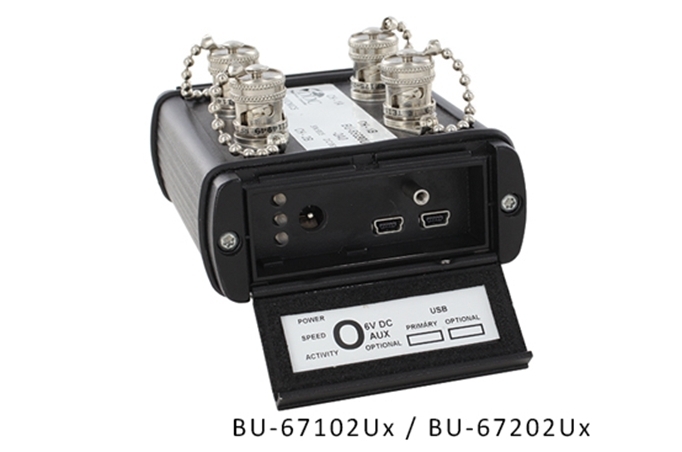

BU-67x02/3Ux USB Multi-IO Test & Simulation for MIL-STD-1553/ARINC 429/ARINC 717

Form Factor: USB 2.0
Protocols: 1553 (2), 429 Rx (4), 429 Tx (2)
OS: Linux, VxWorks, Windows

Model No.:BU-67211U

BU-67211 Multi-I/O 1553/429/717 Advanced Avionics Tester

Form Factor: USB
Protocols: 1553 (2), 429 (8), 717 (2), CANbus 2.0 (2), Serial I/O (4)
OS: Linux, Windows

Model No.:BU-67107F/M

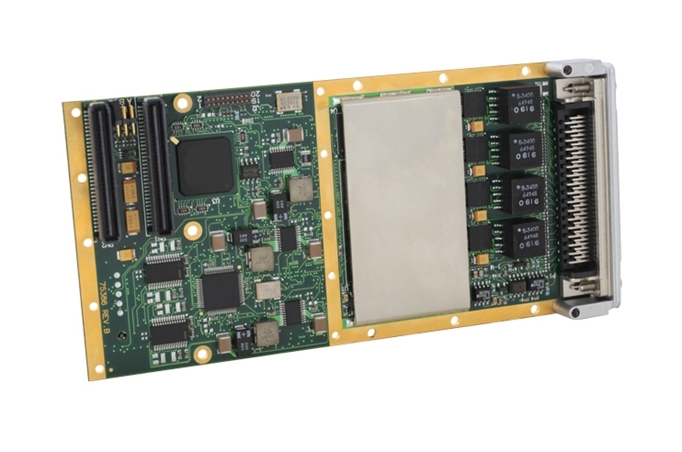

BU-67107 AceXtreme® MIL-STD-1553 & ARINC 429 PMC Card

Form Factor: PMC
Protocols: 1553/1760 (4), 429 Rx (16), 429 Tx (4)
OS: Integrity, Linux, VxWorks, Windows

Model No.:BU-67108C/BU-67109C

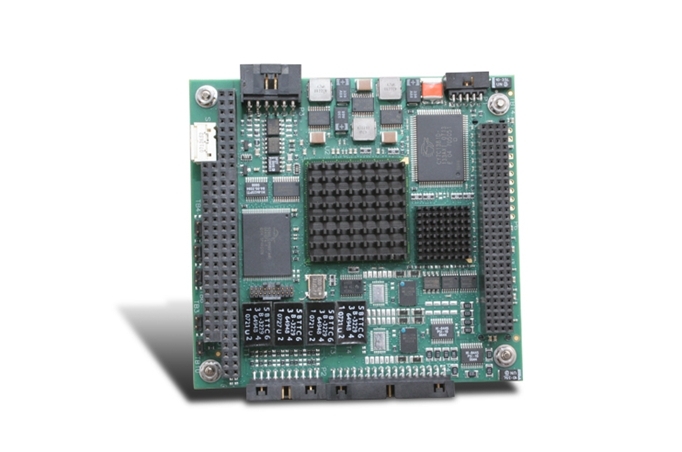

BU-67108/9 AceXtreme® MIL-STD-1553 & ARINC 429 PC/104-Plus and PCI-104 Cards

Form Factor: PC/104-Plus, PCI-104
Protocols: 1553 (2), 429 Rx (16), 429 Tx (8)
OS: Integrity, Linux, VxWorks, Windows

Model No.:BU-67107I/T

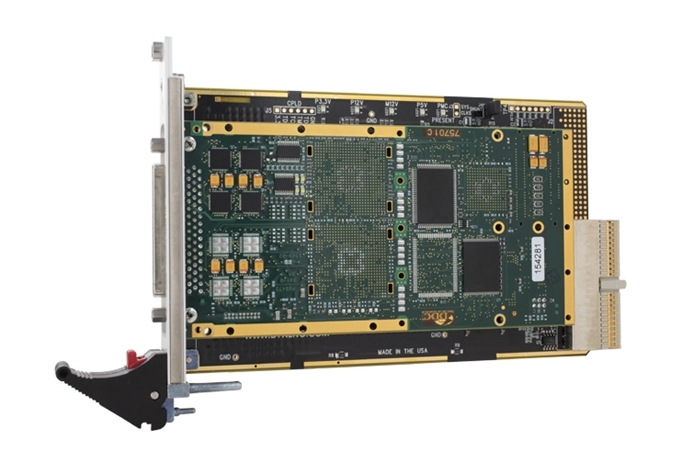

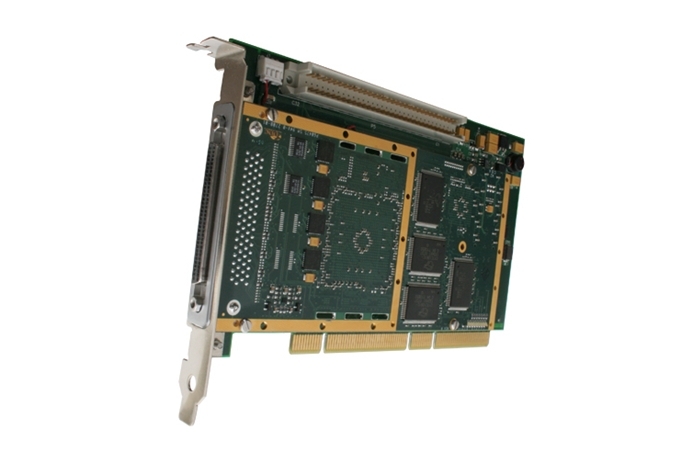

BU-67107I/T AceXtreme® MIL-STD-1553 & ARINC 429 PCI & cPCI Cards

Form Factor: cPCI/PXI, PCI
Protocols: 1553/1760 (4), 429 Rx (16), 429 Tx (4), Serial I/O (2+2)
OS: Integrity, Linux, VxWorks, Windows

Model No.:BU-67102Ux1

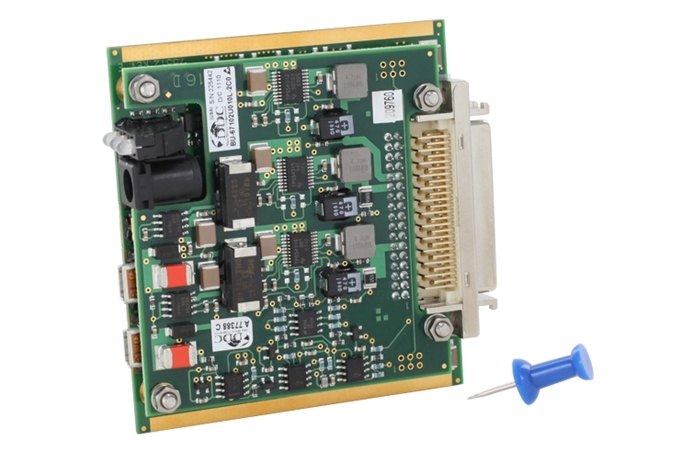

BU-67102Ux1 Small Form Factor USB MIL-STD-1553 and ARINC 429 Board

Form Factor: USB
Protocols: 1553 (2), 429 Rx (4), 429 Tx (2)
OS: Linux, VxWorks, Windows

Model No.:BU-65580M

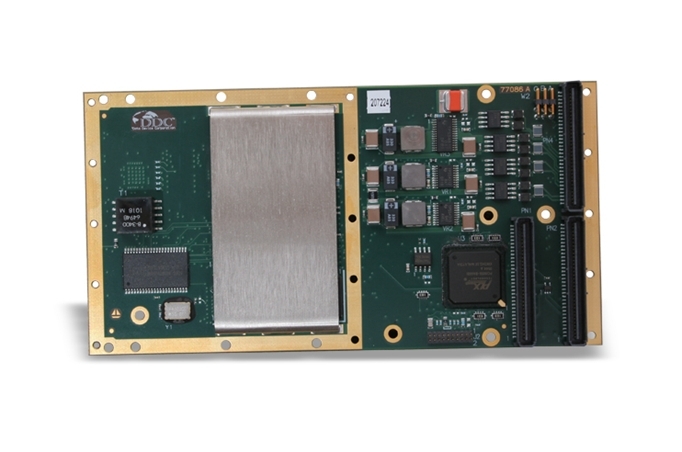

BU65580M EBR-1553/MMSI & MIL-STD-1553 PMC Combo Card

Form Factor: PMC
Protocols: 1553 (1), EBR-1553/MMSI (4)
OS: Windows

Model No.:BU-65590F/M

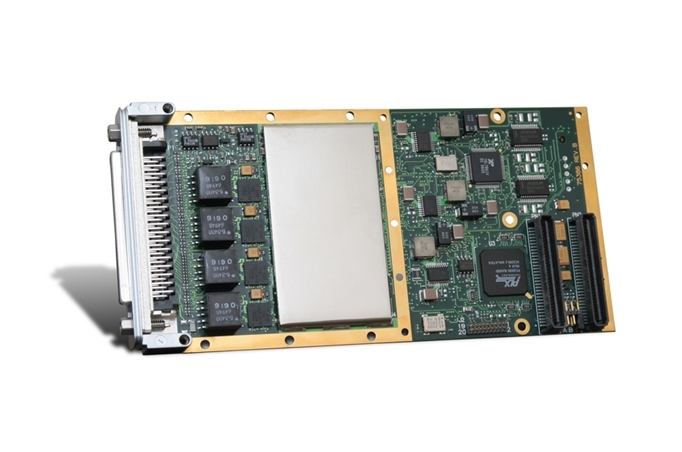

BU-65590F/M Multi-I/O Avionics PMC Card

Form Factor: PMC
Protocols:1553 (4), 429 Rx (16), 429 Tx (4), Serial I/O (2+2)
OS: Linux, VxWorks, Windows

Model No.:BU-65590C

BU-65590C Multi-I/O Avionics PC/104-Plus Card

Form Factor: PC/104 Plus
Protocols: 1553 (2), 429 Rx (16), 429 Tx (8)
OS: Linux, VxWorks, Windows

Model No.:BU-65590I

BU-65590I Multi-I/O 1553/429 Avionics PCI Card

Form Factor: PCI
Protocols: 1553 (4), 429 Rx (16), 429 Tx (4), Serial I/O (2+2)
OS: Linux, VxWorks, Windows

Model No.:BU-65590A

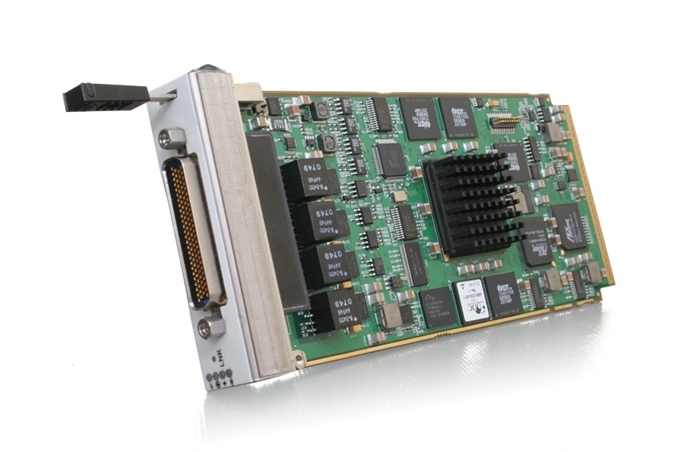

BU-65590A Multi-I/O 1553/429 AMC Card

Form Factor: AMC
Protocols: 1553 (4), 429 Rx (8), 429 Tx (4), Serial I/O (2+2)
OS: Linux, Windows
